How to fix MobaXterm X11-forwarding disabled or not supported by server

Learn how to troubleshoot and resolve the ‘X11-forwarding disabled or not supported by server’ error in MobaXterm. Find solutions and tips to enable X11 forwarding for a smoother remote desktop experience.

x11-forwarding ✘ (disabled or not supported by server), you can solve this problem by adding value in /etc/ssh/sshd_config file.

What is MobaXterm X11 forwarding?

MobaXterm X11-forwarding is a feature that allows a user to run graphical applications on a remote Linux or Unix server and have the graphical output displayed on their local computer. X11 forwarding is a secure method of remotely accessing a graphical user interface (GUI) over a network connection.

While using SSH mode to connect some Linux servers:

For some Server terminal, MobaXterm shows “X11-forwarding: ✔ (remote display is forwarded through SSH)” that means you can start GUI Application.

For some Server Terminal, MobaXterm shows “X11-forwarding: ✘ (disabled or not supported by server)” That means you can’t use GUI Application and you need to configure sshd_config and ssh_config file on that server.

Solution: –

Ensure xorg-x11-xauth is installed

  1. sudo vi /etc/ssh/sshd_config
  2. Search for X11Forwarding, X11DisplayOffset and X11UseLocalhost
  3. Remove the # sign from each parameter if exists. and set value as below mentioned.
    AllowTcpForwarding yes
    X11Forwarding yes
    X11DisplayOffset 10
    X11UseLocalhost yes
  4. Save it
  5. Next run this: sudo vi /etc/ssh/ssh_config
  6. Search for ForwardX11
  7. If there is an found sign, “#”, in front of the parameter, remove it.
  8. It should be ForwardX11 yes
  9. Save the changes
  10. Next make sure sshd is enabled for example: –
    sudo systemctl enable sshd
  11. Now start the service
    sudo systemctl start sshd

Configuring DISPLAY variable

Once completed configuration of ssh_config then you need to configure Display variable,
follow the below steps.

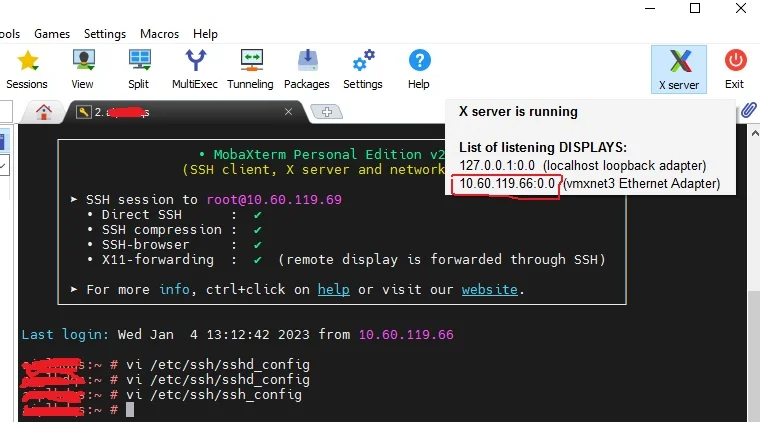

Step 1. Move the mouse cursor to the top right corner where it says X server

Mobaxterm X11-forwarding disabled

It will display the IP address of where is going to forward the X11.

Step 2. Run the following command: –
export DISPLAY=<IP_FROM_STEP1>:0.0

It shows variable is set.

Display variable set by export $Display command

Step 3. Execute below command to check:

GUI Clock open by xclock command

In above image you can see that GUI Clock is open on SSH Terminal. Now you can open application as GUI.
